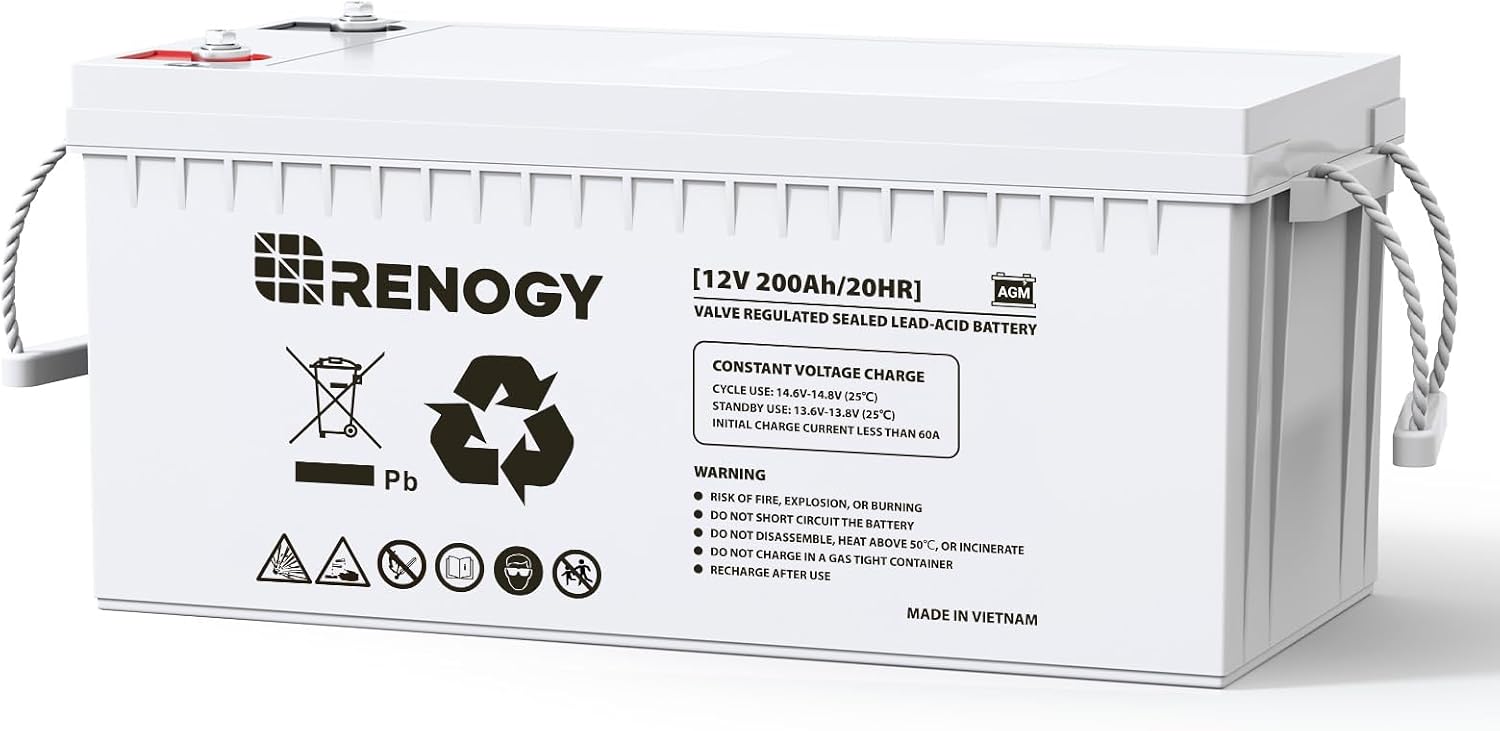

Renogy 12 Volt 200Ah Deep Cycle AGM Battery, Lead Acid Solar Battery

Set name

	200Ah Lead Acid Battery Buying Options	100Ah Lead Acid Battery	Mini Size Lithium Battery Buying Options	Mini Size Lithium Battery Buying Options	Self Heating Battery	Solar Charge Controller	Renogy Inverter
Battery Capacity	200Ah	100Ah	100Ah	300Ah	100Ah	40A	2000W

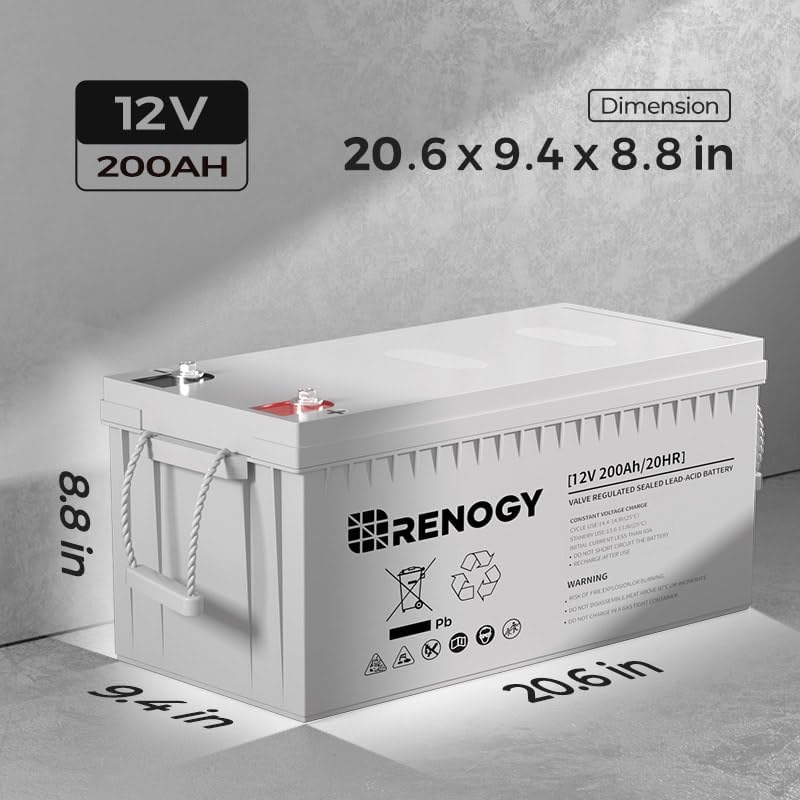

Size Fitment	20.6 x 9.4 x 8.8 in.	13.1 x 6.9 x 8.6 in.	9.02 x 5.43 x 8.39 in.	15.12 x 7.64 x 9.96 in.	9.02 x 5.43 x 8 in.	9.37 x 6.81 x 2.85 in.	4.0 x 17.8 x 8.6 In.
Battery Weight	128.5 LBS	63.8 LBS	22.7 LBS	61 LBS	22 LBS	4.41 LBS	11.7 LBS
Material Type	AGM Lead Acid	AGM Lead Acid	Lithium Iron Phosphate Battery	Lithium Iron Phosphate Battery	Lithium Iron Phosphate Battery	For LiFePO4, AGM, Gel, Flooded	Pure Sine Wave Inverter
Operation Temp	-4°F-140°F	-4°F-140°F	-4°F-140°F	-4°F-140°F	-4°F-140°F	-3mV/°C/2V	95°F

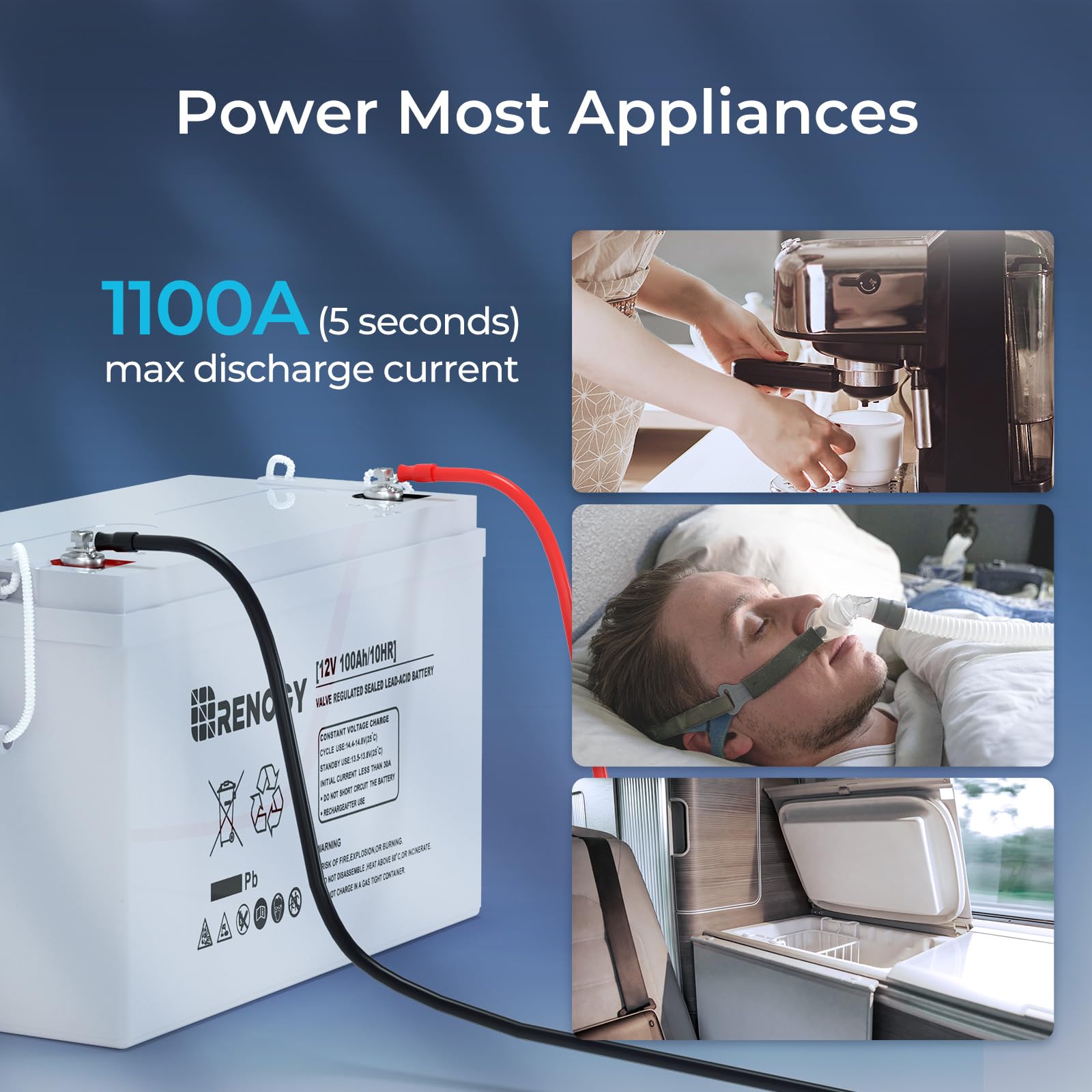

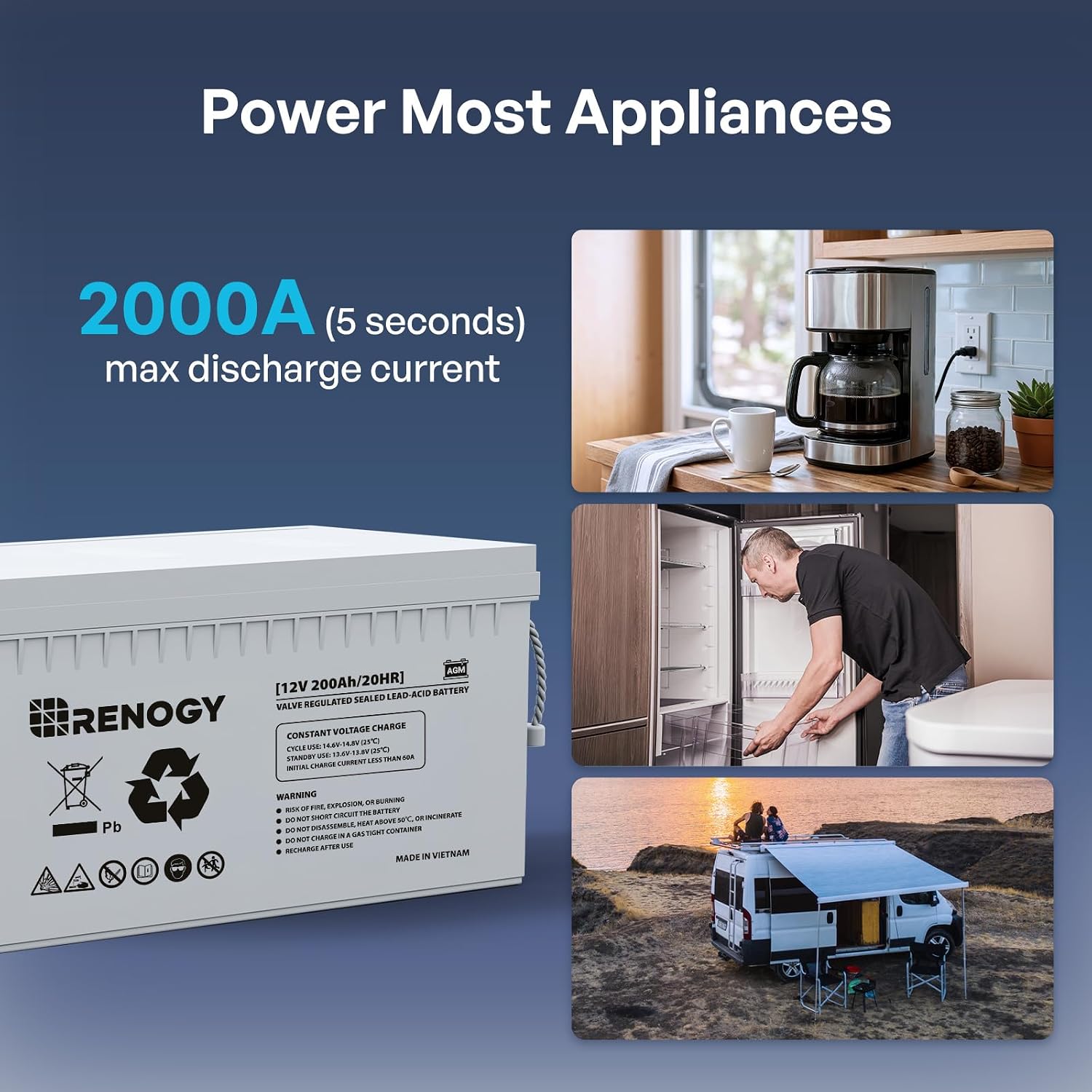

Special Features	2000A Max Discharge within 5s	1100A Max Discharge within 5s	Mini size, IP65	Mini size, IP65	2X Faster Self-Heating Tech	Loading/Charging Smart Control	90% High Efficiency

Can I discharge the battery to 0% and then recharge it again?

To avoid cycle life shortening, it is recommended not to discharge the battery below 50%. And when not in use, we recommend charging it 100% before storing it and recharging it after three months.
Do they come with the terminal bolts? if not what size do they take?

This Renogy AGM battery comes with two M8 x 1.25 x 20 mm terminal bolts.
Can I connect batteries in series and in parallel?

Yes, you can. The maximum number that can be connected in parallel is 4. In series, there are no limitations.
Can I connect a 100 Ah battery to a 200 Ah battery?

No, you can't. All the batteries you connect together should be the same capacity (Ah), the same voltage (V), and most importantly, the same battery type (AGM). And it would be better if they come from the same brand.
When using a charge controller, which battery type should I set?

You should choose the SLD battery settings.

Maintenance Free: Manufactured with thick absorbent Glass Mat (AGM) seperators and advanced valve regulated technology, Renogy deep cycle agm batteries save you from acid leakage and frequent maintenance..Batteries Required:no
Excellent Discharge Performance: Proprietary quinary alloy plates and specially treated plate grids enable low internal resistance and high discharge currents of up to 10 times the battery rated capacity.

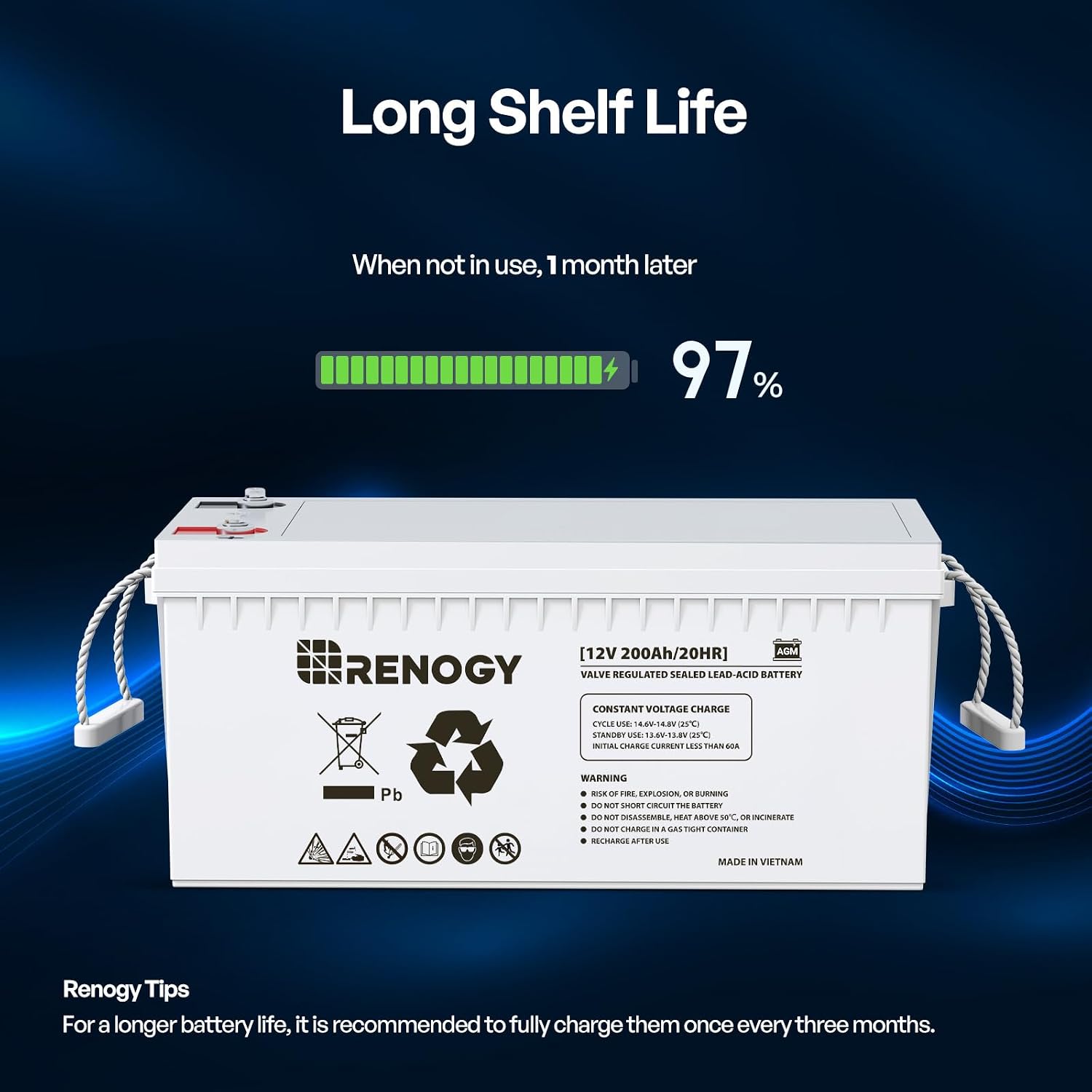

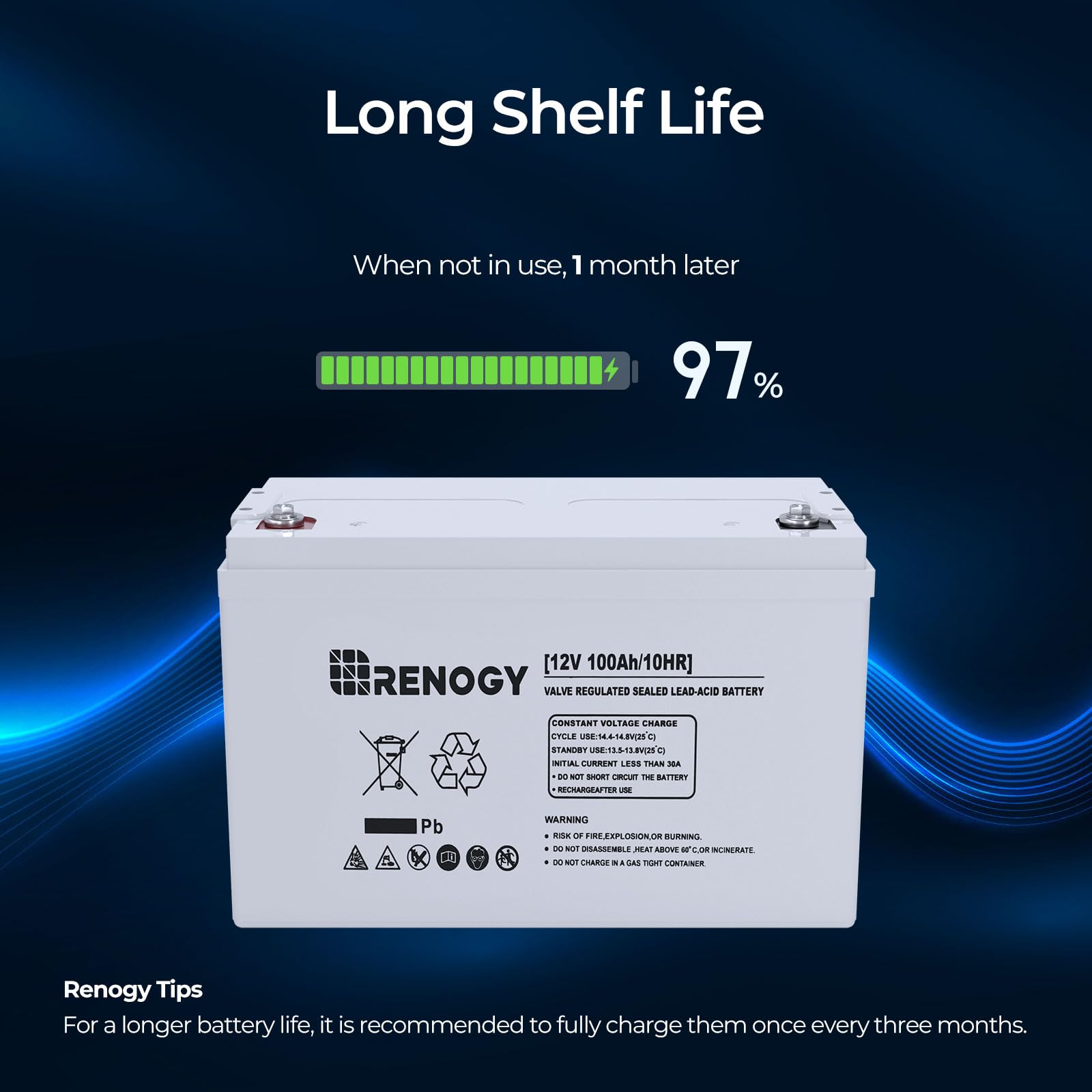

Long Shelf Life: Made of high purity materials, Renogy deep cycle agm batteries reduce the monthly Self discharge Rate below 3% at 77℉ (25℃), which is 5 times lower than their flooded counterparts.

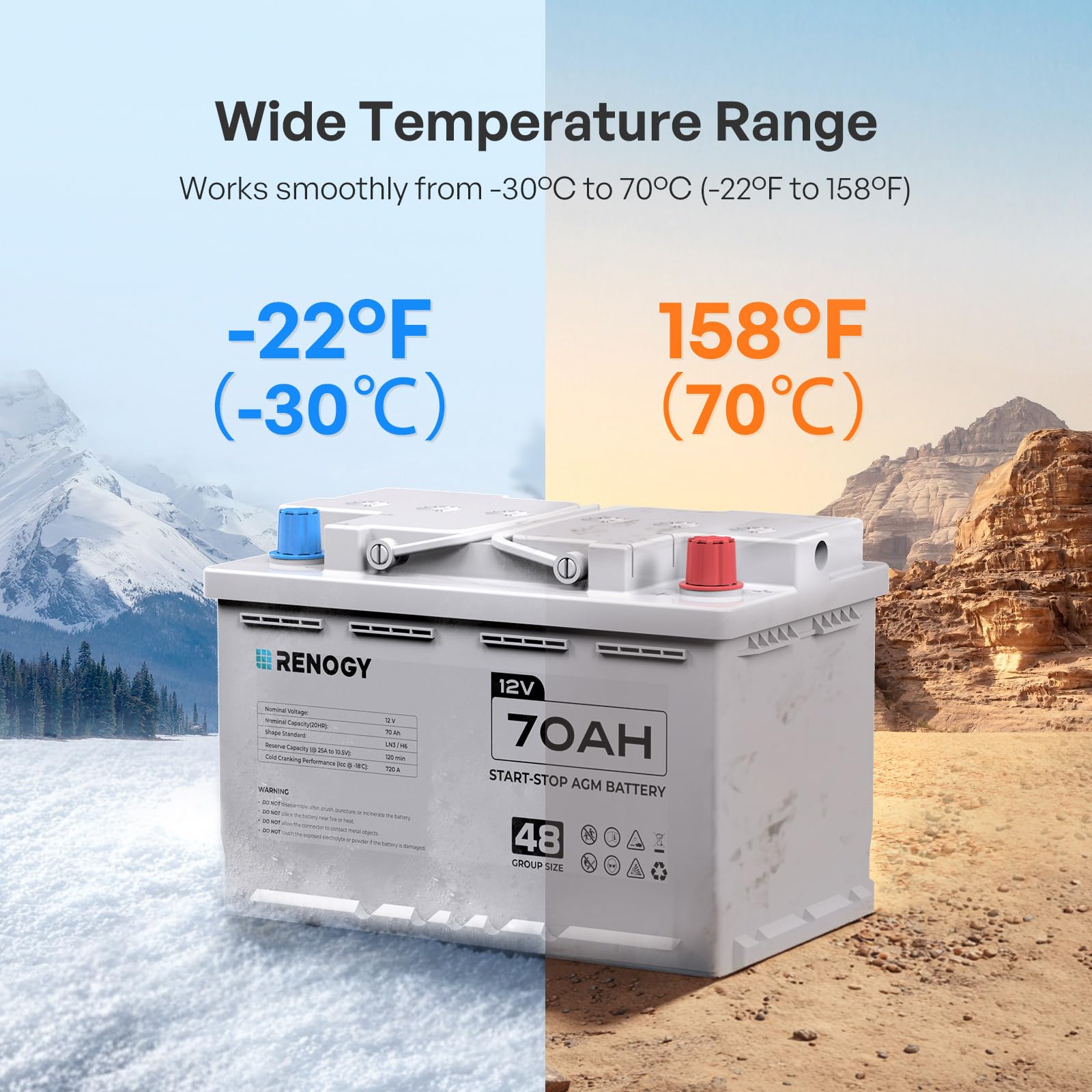

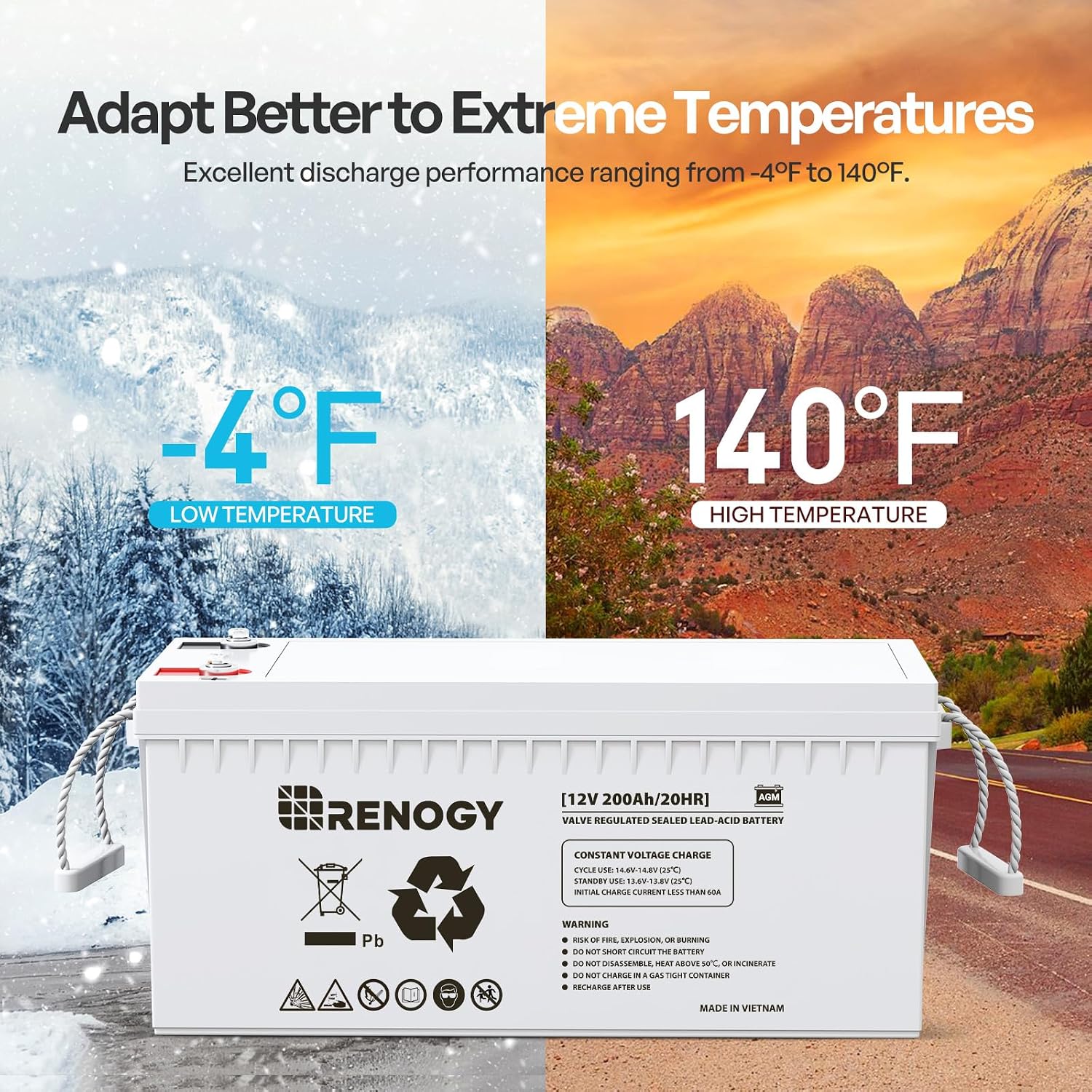

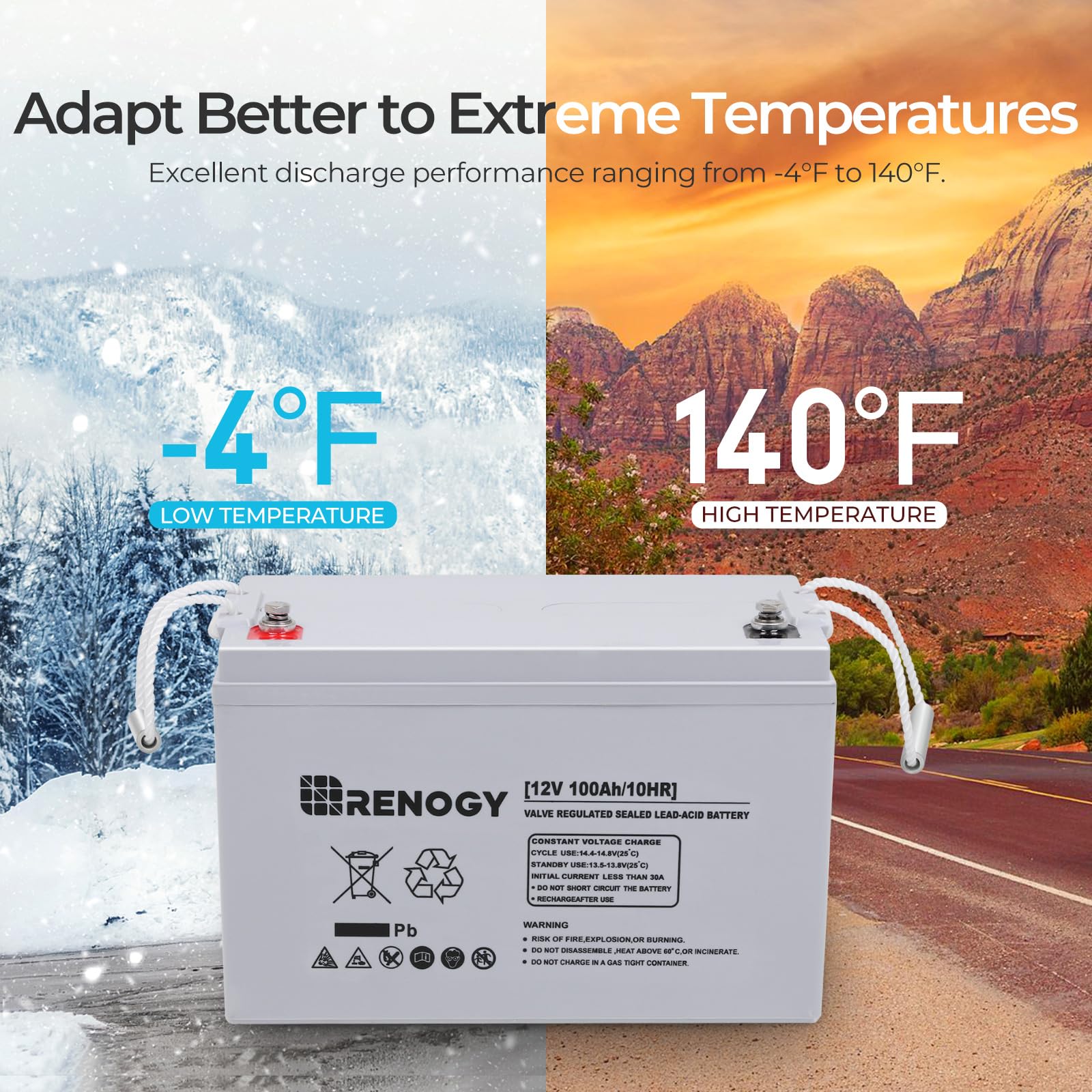

Wide Operation Temperature Range: Improved electrolyte Formula ensures stable battery capacity and outstanding discharge performance at low temperatures below 32℉ (0℃).
Length of Cycle services is significantly affected by depth for discharge (primarily), along with ambient temperature, discharge Rate, and the way the battery is recharged.
NOTE: We highly recommend installing the battery upright. It is allowed to install the battery on its side only if there are special reasons for doing so. DO NOT install the battery upside down.
Reference Capacity: C3: 152.9Ah; C5: 172.3Ah; C10: 190.5Ah; C20: 200Ah

Number of Batteries	1 12V batteries required.
Brand	Renogy
Battery Cell Composition	Lead-Acid, AGM
Battery Capacity	200
Recommended Uses For Product	RV
